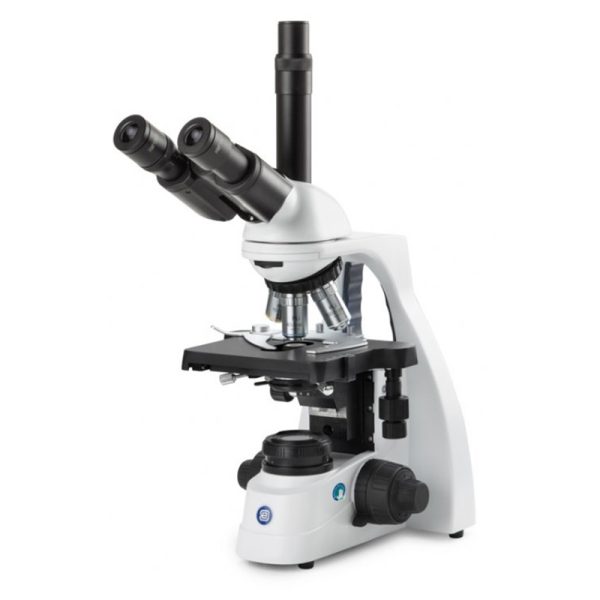

bScope Trinocular Microscope BS.1153-EPL-DF

Description

Supplied without rechargeable batteries
HWF 10x/20 mm eyepieces
Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48- 76 mm
Reversed quadruple revolving nosepiece on ball-bearings
E-plan EPL 4x, 10x, S40xobjectives and Plan PL S100x/1.25 oil immersion objective with built-in iris diaphragm for darkfield
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2
mm per rotation. Total travel approximately 19 mm. Friction adjustment
Plain 131 x 152/197 mm rackless stage with 75 x 36 mm mm mechanical rackless stage
Supplied with a darkfield condenser N.A. 1.20 cardioid type and built-in LED and
an in height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
