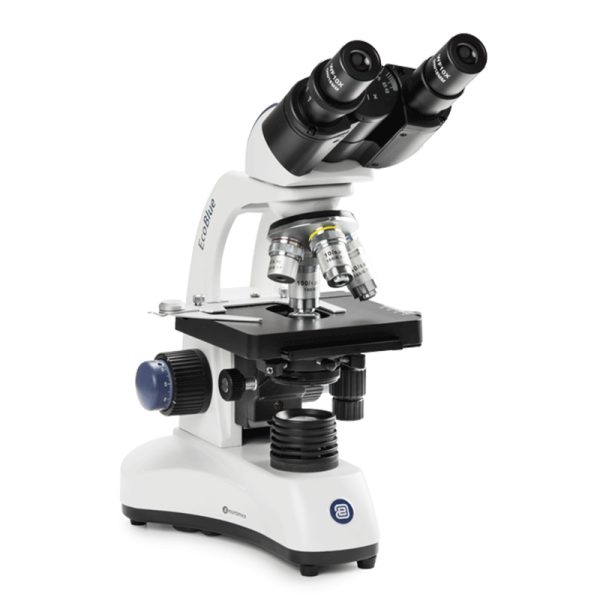

Description
Secured DIN WF 10x/18 mm eyepieces
Binocular head Siedentopf type, 30° inclined, 360° rotatable Forwarded quadruple revolving nosepiece on ball-bearings Achromatic 4x, 10x, S40x, $100x oil immersion objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W NeoLED illumination with built-in 3 rechargeable batteries
External power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
